KEYFEATURES
● MIG/ LIFT TIG/ MMA functions
● 2T/4T/ VRD operation mode
● MIG/ flux cored optional
● Suitable for 0.8/1.0/1.2/1.6mm welding wire
● Synergic adjustment
● Factory defaults setting
● Crater current & voltage voltage
● Gas checking/wire checking function
● ARC characteristic adjustment
● Industrial application
● Easy arc starting, less spatter, stable current
TECHNICAL DATA
Input Voltage(V) | AC380V-50/60Hz |
Rated Input Power(KW) | 19.6 |
Rated Input Current(A) | 29.7 |
Current Range (A) | 40-500 |
Rated Output Voltage(V) | 16-43 |
Wire-feeding Speed(m/min) | 3-15 |
Plate Thickness(mm) | 1.0+ |
Duty Cycle(%) | 60 |
Protection/Insulation Grade | IP21S/F |
Packing Dimension(L*W*H mm) | 605x335x515 |
Net Weight (KG) | 28 |

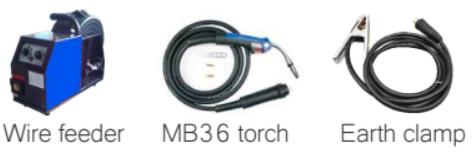

STANDARD ACCESSORIES
