KEYFEATURES
● With MMA function
● TIG 2T/4T functions
● Post flow adjustment
● Strong high frequency for easy starting
● High efficiency, stable and reliable arc
● 10-25mm sockets
● Auto-compensation for voltage fluctuation
● It can weld stainless steel, carbon steel, low-alloy steel
TECHNICALDATA
| Input Voltage(V) | AC220V-50/60Hz |
| Rated Input Power(KW) | 9.6/6.2 |
| Rated Input Current(A) | 43.6/28 |
| Current Range (A) | 10-200 |
| Rated Output Voltage (V) | 28/18 |
| No-load Loss(W) | 40 |
No-load Voltage(V) | 56 |
| Duty Cycle(%) | 60 |
| Protection/Insulation Grade | IP21S/F |
| Packing Dimension(L*W*H mm) | 440x260x340 |
| Net Weight (KG) | 8 |

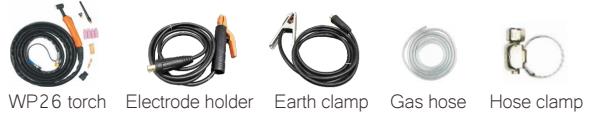

STANDARD ACCESSORIES
