KEYFEATURES
● With MMA function
● TIG 2T/ 4T functions
● Pulse TIG & cold TIG functions
● Post flow adjustment
● Strong high frequency for easy starting
● High efficiency, stable and reliable arc
● 10-25mm sockets
● Auto-compensation for voltage fluctuation
● It can weld stainless steel, carbon steel, low-alloy steel
TECHNICALDATA
Input Voltage(V) | AC380V-50/60Hz |
Rated Input Power(KW) | 18.2/13.2 |
Rated Input Current(A) | 27.6/20 |
Current Range (A) | 10-400 |
Rated Output Voltage (V) | 36/26 |
No-load Loss(W) | 60 |
No-load Voltage(V) | 68 |
Duty Cycle(%) | 60 |
Protection/Insulation Grade | IP21S/F |
Packing Dimension(L*W*H mm) | 605x335x515 |
Net Weight (KG) | 25.5 |

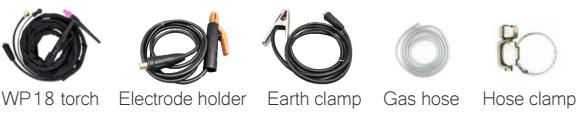

STANDARD ACCESSORIES
