KEY FEATURES
Pulse for carbon steel digital welder

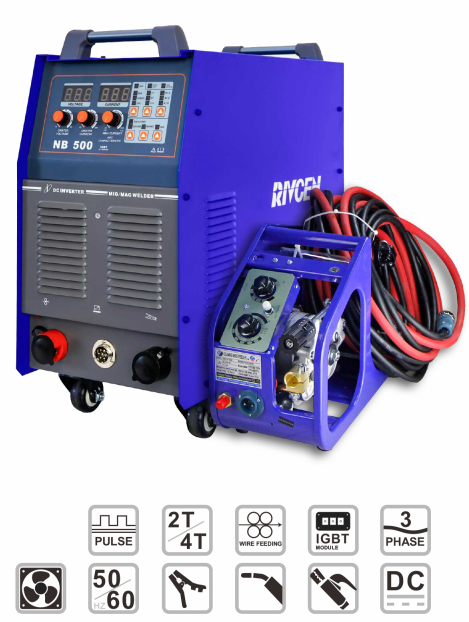

High performance compact CO2/MIG/MAG Inverter
Separated wire feeder
2T/4T/spot welding function
Overheat/ less voltage functions
Gas checking/ wire checking functions
Crater voltage/ crater current adjustment
Synergic adjustment
MMA current/arc characteristic adjustment
Can weld flux-cored/ solid-cored welding wire
15kg/20kg welding wire
Suitable for 1.0/ 1.2/ 1.6mm welding wire
Welding power with wheel Stable and reliable arc
TECHNICAL DATA
| Input Voltage(V) | AC380V-50/60Hz |
| Rated Input Power(KW) | 24.7 |
| Rated Input Current(A) | 37.4 |
| Current Range (A) | 50-500 |
| Output Voltage Range (V) | 16.5-50 |
| Wire-feeding Speed(m/min) | 3-15 |
| Plate Thickness(mm) | 1.0+ |
| Duty Cycle(%) | 60 |
| Protection/Insulation Grade | IP21S/F |
| Packing Dimension(L*W*H mm) | 775×375×675 |
| Net Weight (KG) | 42 |

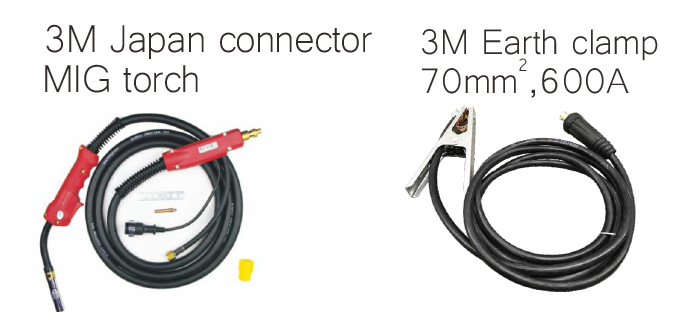

STANDARD ACCESSORIES
