KEY FEATURES

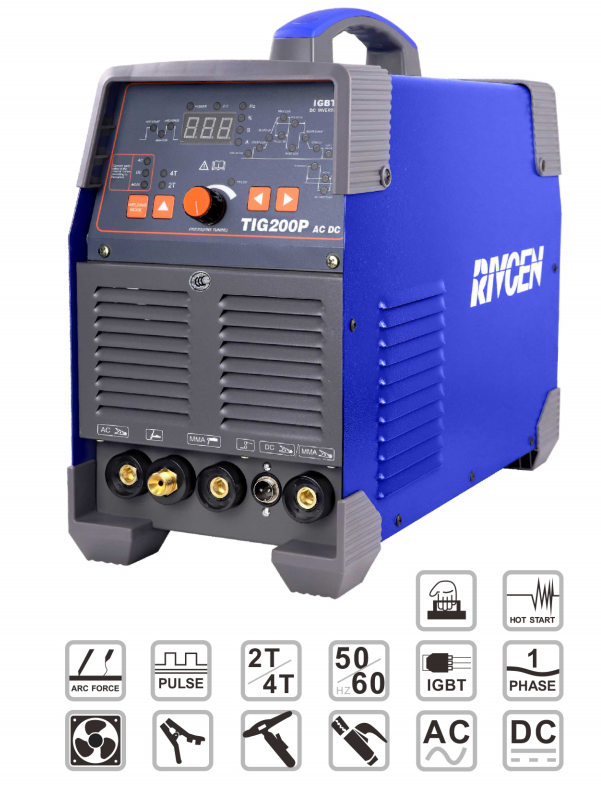

●TIG Pulse AC/DC with digital control
●Intuitive control panel, easy to operate
●Pre-flow, post flow time
●Up slope, down slope
●Pulse frequency, pulse width adjustment
● Start current, base current, crater current Adjustment
● Cleaning width, AC amplitude, AC frequency adjustment
● Arc force, hot start functions
● 2T/4T/MMA functions
● AC function for aluminum and aluminum alloys
● DC TIG function for carbon steel, copper and non-ferrous metals
● High speed pulse with precise adjustment forultimate weld bead
●10-25mm sockets
TECHNICAL DATA
| Input Voltage(V) | AC220V-50/60Hz |
| Rated Input Power(KW) | 6.1/8.3 |
| Rated Input Current(A) | 28/38 |
| Current Range (A) | 30-200/10-200 |
| Arcing Way | HF |
| Hot Start Current(A) | 0-100 |
| No-load Voltage(V) | 62 |
| Duty Cycle(%) | 60 |
| Protection/Insulation Grade | IP21S/F |
| Packing Dimension(L*W*H mm) | 540x320x410 |
| Net Weight (KG) | 16 |
STANDARD ACCESSORIES
