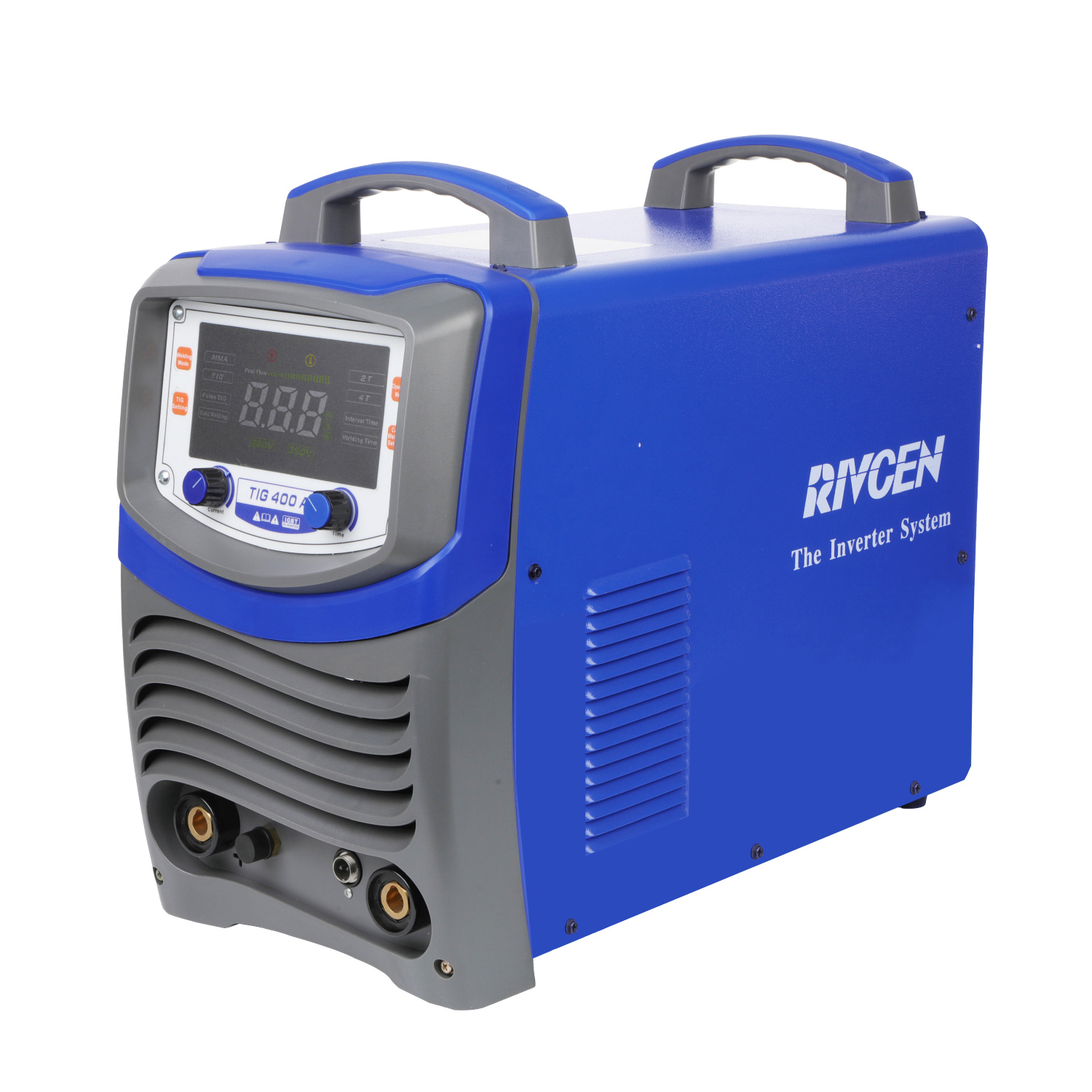

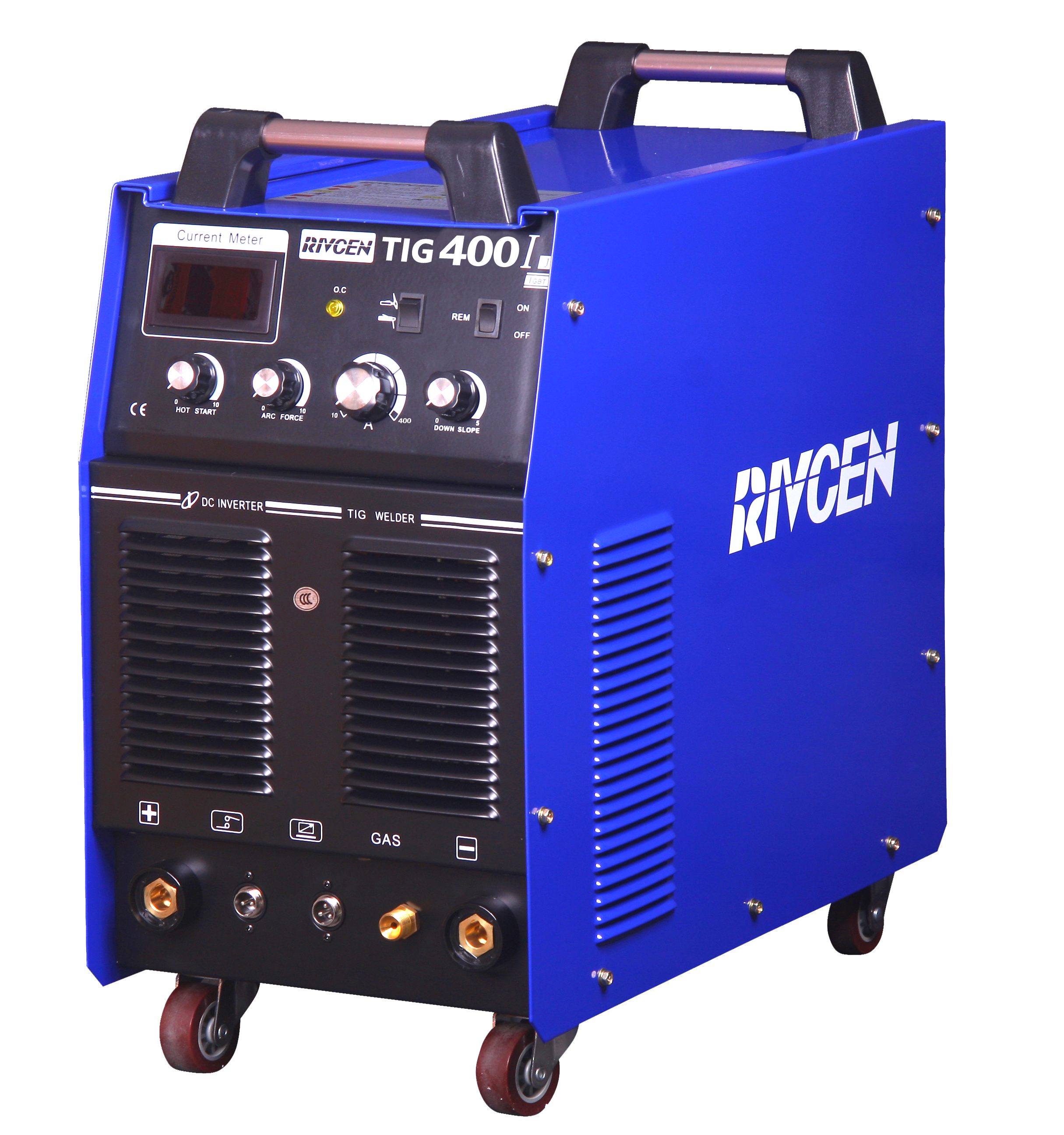

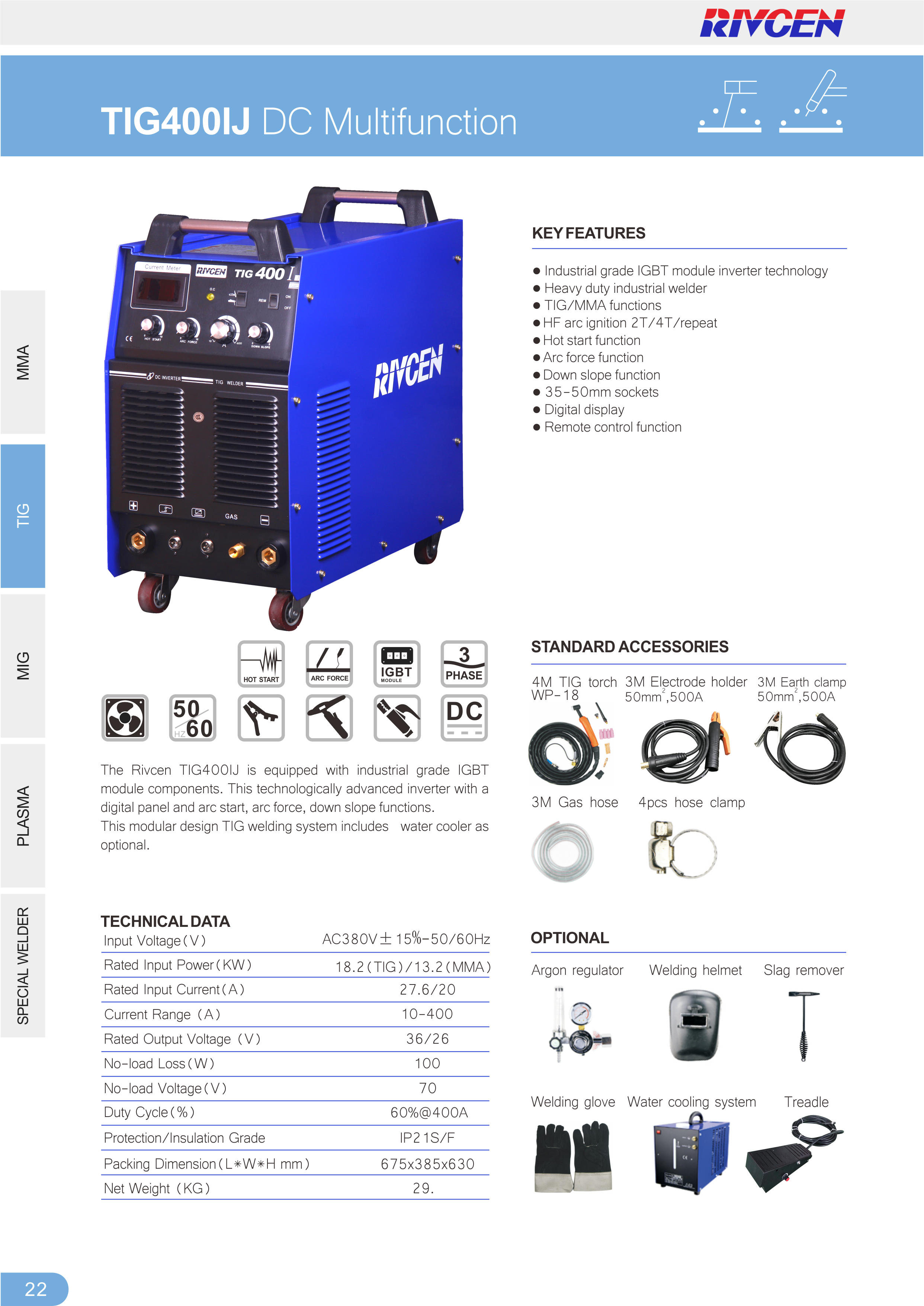

TIG Welding Machine
Features:
Welding Capability: support both TIG (Tungsten Inert Gas) and MMA (Manual Metal Arc) processes for versatility with different metals.
Standard Accessories 1.5 m cable with earth clamp 2 m cable with electrode holder TIG torch with water cooling
Technology: advanced IGBT module inverter technology with 85% fficiency,stable arc performance, and reduced energy consumption
Design:compact and portable, suitable for workshop and training use.
Cooling System: with a water-cooled TIG torch and powerful fan cooling for 60% duty cycles.
Adjustable Parameters: Arc force current and current down-slope time should be freely adjustable for precision control.
Technical Specifications:
Input Power Voltage: 3-phase 380-440V, 50/60 Hz
380-440V, 50/60 Hz Rated Input Power: 18.2 kVA
No-load Voltage: 70 V
Output Current Range: 10-400A
Duty Cycle: 60%@400A
Efficiency: 85%
Insulation Class: F
Protection Class: IP21s
with three-layer protection design waterproof, dustproof, and anti-erosion.
Usable Electrode Size: 1.6-6.0 mm (MMA) ; Φ 5 mm electrode continuously
Cooling & Protection: IGBT inverter technology; waterproof, dustproof, anti-erosion; 100% fan cooling; high temperature performance Feature Adjustments: Adjustable arc force and current declining time Water-cooled torch
Weight: 29.5 kg Dimensions: 675*385*630 mm
