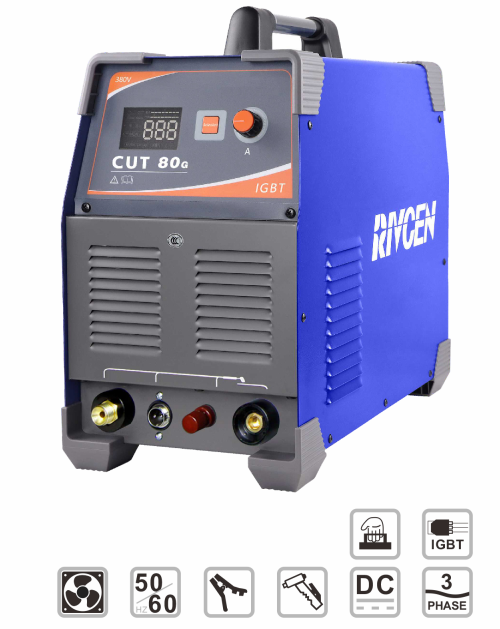

The Rivcen CUT80G is a professional high-end cutting inverter equipped with the latest IGBT technology.This technologically advanced plasma inverter is extremely user-friendly and offers reliable cutting performance.
Product Description
KEY FEATURES
With arc pilot
Digital smart welder
Multifunction digital display
Post-flow adjustment
Max current 80A
PWM control system
Maximum cutting thickness up to 25mm, perfect cutting thickness 20mm
TECHNICAL DATA
Input Voltage
AC380V-50/60Hz
Rated Input Power( KW)
11.9
Rated Input Current(A)
18
Current Range (A)
20-80
Rated Output Voltage (V)
112
No-load Loss(W)
60
No-load Voltage(V)
268
Duty Cycle (% )
60
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm)
600x360x525
Net Weight ( KG)
25
STANDARD ACCESSORIES
KEY FEATURES
With arc pilot
Digital smart welder
Multifunction digital display
Post-flow adjustment
Max current 80A
PWM control system
Maximum cutting thickness up to 25mm, perfect cutting thickness 20mm
