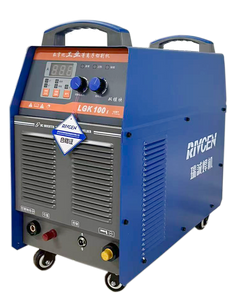

The Rivcen CUT 100 is a professional high-end cutting inverter equipped with the latest IGBT dual module technology. This technologically advanced plasma inverter is extremely user-friendly and offers reliable cutting performance.
Product Description
KEY FEATURES
Digital industrial air plasma cutter
IGBT dual module plasma cutting inverter
Maximum cutting thickness up to 40mm,perfect cutting thickness 25mm
Maximum current 100A
Can punch a hole or groove welding
PWM control system
Advanced arc pilot system design,100% arc start
Main transformer of crystallite
Digital display
With CNC connection
Smooth precise cutting
2T/4T function
Low air pressure, less voltage, lack phase protection
TECHNICAL DATA
Input Voltage
AC380V-50/60Hz
Rated Input Power( KW)
15.2
Rated Input Current(A)
23.1
Current Range (A)
20-100
Rated Output Voltage (V)
120
No-load Loss(W)
80
No-load Voltage(V)
268
Duty Cycle (% )
100
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm)
665x390x560
Net Weight ( KG)
35
STANDARD ACCESSORIES
