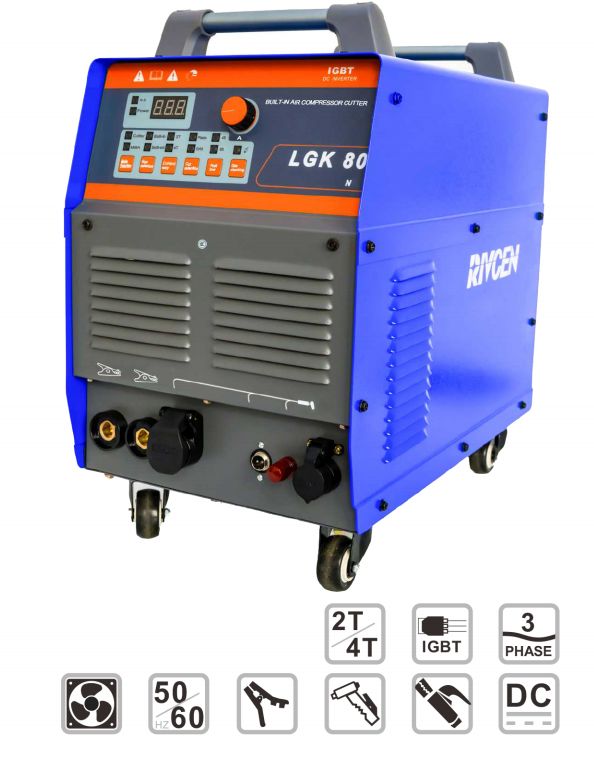

The Rivcen CUT8ON air plasma cutter built-in air compressor and high powered IGBT components is the perfect solution for cutting low carbon steel, stainless steel and low alloy steel.The cutter maximum cutting thickness up to 25mm, perfect cutting thickness 20mm.
Product Description
KEY FEATURES
Built-in air compressor cutter
Applied to grid workpieces cutting
Built-in/separated compressor selection
IGBT plasma cutting inverter
Maximum cutting thickness up to 25mm, perfectcutting thickness 20mm
Multifunction digital display
2T/ 4T/ MMA function
Post-flow adjustment
Gas checking function
Smooth precise cutting
TECHNICAL DATA
Input Voltage
AC380V-50/60Hz
Rated Input Power( KW)
11.3/6.2
Rated Input Current(A)
17.2/9.4
Current Range (A)
20-80/30-180
Rated Output Voltage (V)
112/27.2
No-load Loss(W)
80
No-load Voltage(V)
340/70
Duty Cycle (% )
60
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm)
615x400x560
Net Weight ( KG)
35
STANDARD ACCESSORIES
KEY FEATURES
Built-in air compressor cutter
Applied to grid workpieces cutting
Built-in/separated compressor selection
IGBT plasma cutting inverter
Maximum cutting thickness up to 25mm, perfectcutting thickness 20mm
