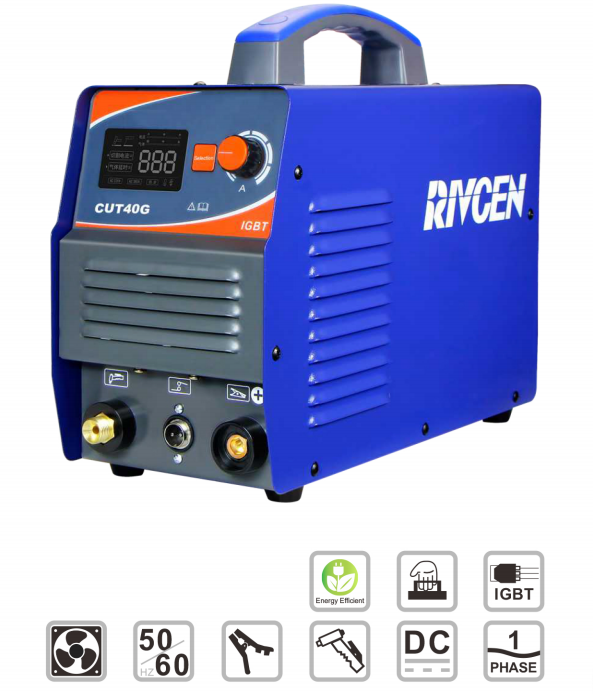

The Rivcen CUT40G air plasma cutter equipped with PWV technology and high powered IGBT components is the perfect solution for cutting low carbon steel, stainless steel and low-alloysteel.This user-friendly and highly portable inverter offers smooth, fast and precise cuting on material up to 10mm and a maximum of 16mm.
Product Description
KEY FEATURES
Portable air plasma cutter
Digital smart welder
Multifunction digital display
PWM control system
Post-flow adjustment
Max current 40-45A
Maximum cutting thickness up to 16mm, perfect cutting on material up to 10mm
TECHNICAL DATA
Input Voltage
AC220V-50/60Hz
Rated Input Power( KW)
9.1
Rated Input Current( A )
41.7
Current Range (A)
20-53
Rated Output Voltage (V)
101.2
No-load Loss(W)
60
No-load Voltage(V)
230
Duty Cycle(%)
60
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm )
440x260x315
Net Weight ( KG)
8
STANDARD ACCESSORIES
KEY FEATURES
Portable air plasma cutter
Digital smart welder
Multifunction digital display
PWM control system
Post-flow adjustment
Max current 40-45A
Maximum cutting thickness up to 16mm, perfect cutting on material up to 10mm
