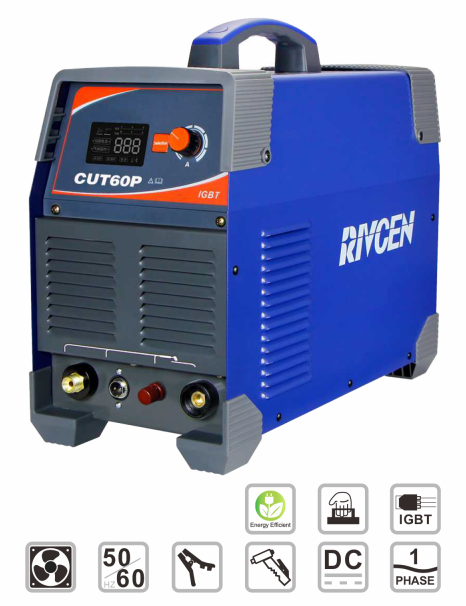

The Rivcen CUT60P is a professional high-end cutting inverter equipped with the latest IGBT technology.This technologically advanced plasma inverter is extremely user-friendly and offers reliable cutting performance.
Product Description
KEY FEATURES
With arc pilot
Digital smart welder
Multifunction digital display
PWM control system
Post-flow adjustment
Max current 60A
Maximum cutting thickness up to 20mm, perfect cutting thickness15mm
TECHNICAL DATA
Input Voltage
AC220V-50/60Hz
Rated Input Power( KW)
10.6
Rated Input Current(A)
48.5
Current Range (A)
20-60
Rated Output Voltage (V)
104
No-load Loss(W)
60
No-load Voltage(V)
239
Duty Cycle (% )
60
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm)
540x320x410
Net Weight ( KG)
10.5
STANDARD ACCESSORIES
KEY FEATURES
With arc pilot
Digital smart welder
Multifunction digital display
PWM control system
Post-flow adjustment
Max current 60A
Maximum cutting thickness up to 20mm, perfect cutting thickness15mm
