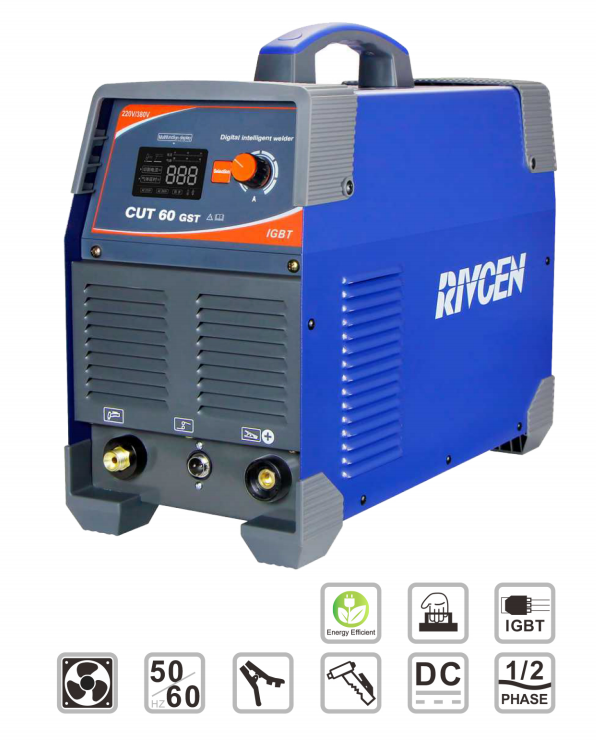

The Rivcen CUT60GST air plasma cutting machine is digital smartcutter. Dual voltage from 180-250V single phase and 330-440V three phase. Dual voltage can make machine flexible on anywhere, easily use inthe city of peak electricity and the countryside of unstable voltage.
Product Description
KEY FEATURES
Auto adaptation for dual power 220V/380V input
Digital smart welder
Multifunction digital display
PWM control system
Post-flow adjustment
Max current 60A
Maximum cutting thickness up to 20mm, perfect cutting thickness 15mm
TECHNICAL DATA
Input Voltage
AC220V/380V-50/60Hz
Rated Input Power( KW)
10.7/7.9
Rated Input Current(A)
48.5/12
Current Range (A)
20-60
Rated Output Voltage (V)
104
No-load Loss(W)
60
No-load Voltage(V)
239
Duty Cycle (% )
60
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm)
540x320x410
Net Weight ( KG)
10.5

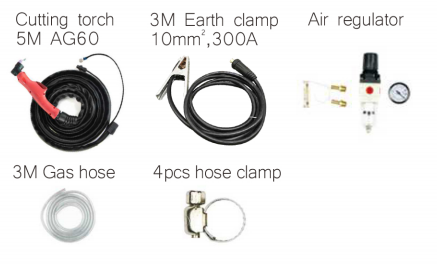

STANDARD ACCESSORIES
KEY FEATURES
Auto adaptation for dual power 220V/380V input
Digital smart welder
Multifunction digital display
PWM control system
Post-flow adjustment
Max current 60A
Maximum cutting thickness up to 20mm, perfect cutting thickness 15mm
