KEYFEATURES

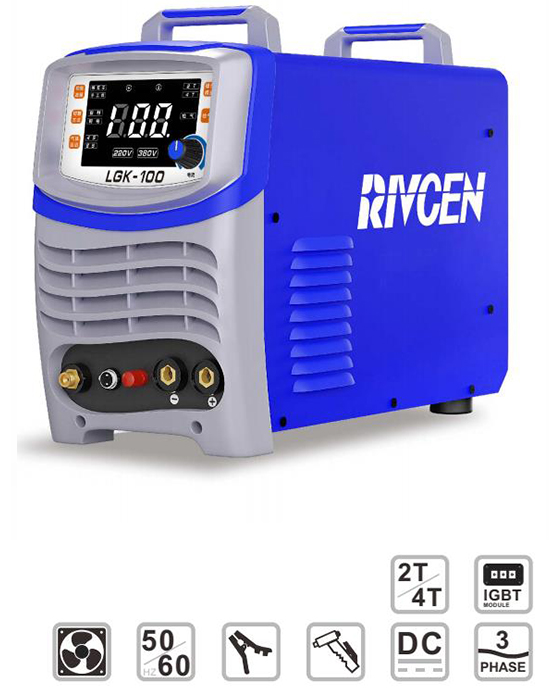

● Digital industrial air plasma cutter
● IGBT dual module plasma cutting inverter
● Maximum cutting thickness up to 40mm,perfect cutting thickness 25mm
● Maximum current 100A
● Can punch a hole or groove welding
● PWM control system
● Advanced arc pilot system design, 100% arc start
● Main transformer of crystallite
● Digital display
● With CNC connection
● Smooth precise cutting
● 2T/4T function
● Low air pressure, less voltage, lack phase protection
TECHNICAL DATA
| Input Voltage | AC380V-50/60Hz |
| Rated Input Power(KW) | 15.2 |
| Rated Input Current(A) | 23.1 |
| Current Range (A) | 20-100 |
| Rated Output Voltage (V) | 120 |
| No-load Loss(W) | 80 |
| No-load Voltage(V) | 268
|
| Duty Cycle(%) | 100
|
| Protection/Insulation Grade | IP21S/F |
| Packing Dimension(L*W*H mm) | 665x390x560 |
| Net Weight (KG) | 35 |

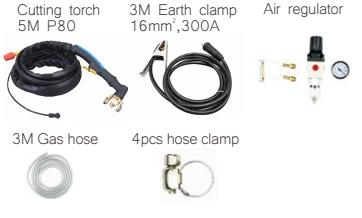

STANDARD ACCESSORIES
