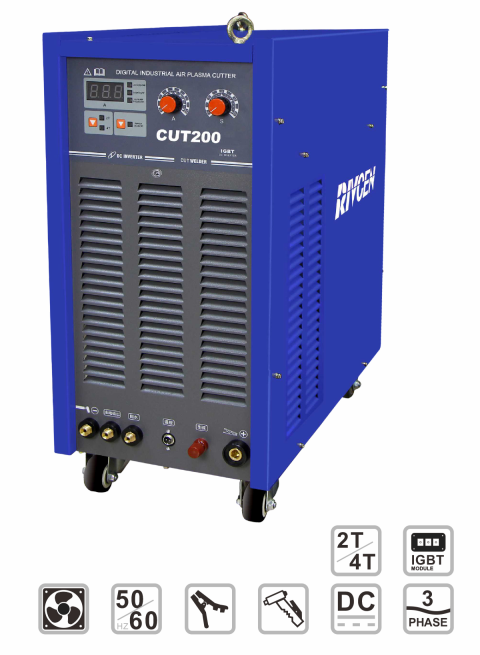

The Rivcen CUT200 is a professional high-end cutting inverter equipped with the latest IGBT dual module technology. This technologically advanced plasma inverter is extremely user-friendly and offers reliable cutting performance.
Product Description
KEY FEATURES
Digital industrial cutter
IGBT dual module plasma cutting inverter
Maximum cutting thickness up to 60mm, perfect cutting thickness 45mm
Can punch a hole or groove welding
PWM control system
Maximum current 200A
Advanced arc pilot system design,100% arc start
Main transformer of crystallite
Digital display
With CNC connection
Water cooling system
2T/4T function
Less voltage, lack phase protection
TECHNICAL DATA
Input Voltage
AC380V-50/60Hz
Rated Input Power( KW)
40.5
Rated Input Current(A)
61.6
Current Range (A)
20-200
Rated Output Voltage (V)
160
No-load Loss(W)
100
No-load Voltage(V)
329
Duty Cycle (% )
100
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm)
780x380x775
Net Weight ( KG)
60

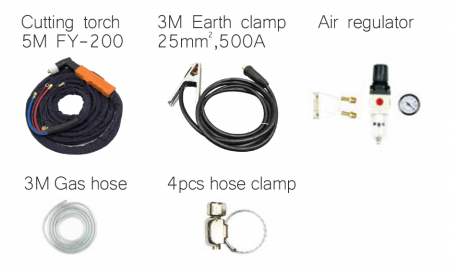

STANDARD ACCESSORIES
KEY FEATURES
Digital industrial cutter
IGBT dual module plasma cutting inverter
Maximum cutting thickness up to 60mm, perfect cutting thickness 45mm
