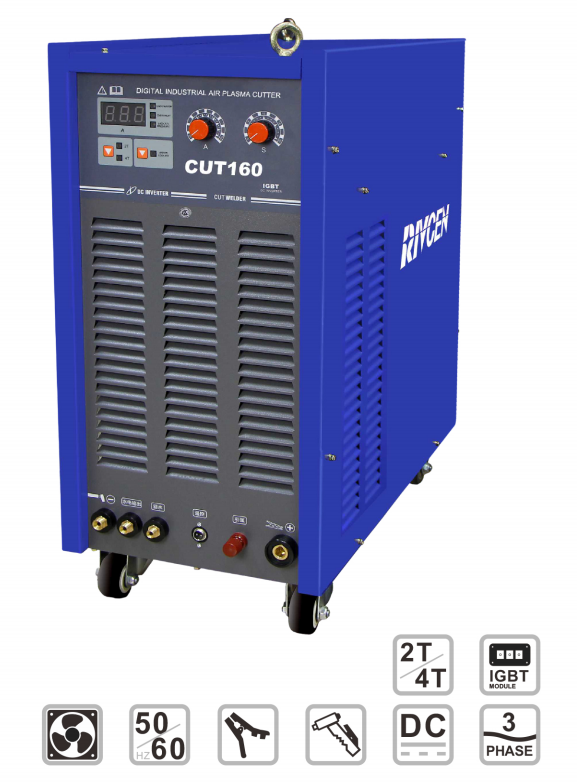

The Rivcen CUT160 is a professional high-end cutting inverter equipped with the latest IGBT dual module technology. This technologically advanced plasma inverter is extremely user-friendly and offers reliable cutting performance.
Product Description
KEY FEATURES
Digital industrial cutter
IGBT dual module plasma cutting inverter
Maximum cutting thickness up to 50mm, perfect cutting thickness 35mm
Can punch a hole or groove welding
PWM control system
Maximum current 160A
Advanced arc pilot system design, 100% arc start
Main transformer of crystallite
Digital display
With CNC connection
Water cooling system
2T/4T function
Less voltage, lack phase protection
TECHNICAL DATA
Input Voltage
AC380V-50/60Hz
Rated Input Power( KW)
29.2
Rated Input Current(A)
44.3
Current Range (A)
20-160
Rated Output Voltage (V)
144
No-load Loss(W)
100
No-load Voltage(V)
320
Duty Cycle (% )
100
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm)
780x380x775
Net Weight ( KG)
60

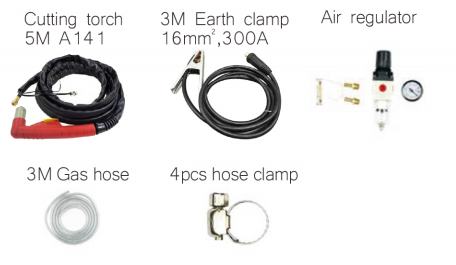

STANDARD ACCESSORIES
