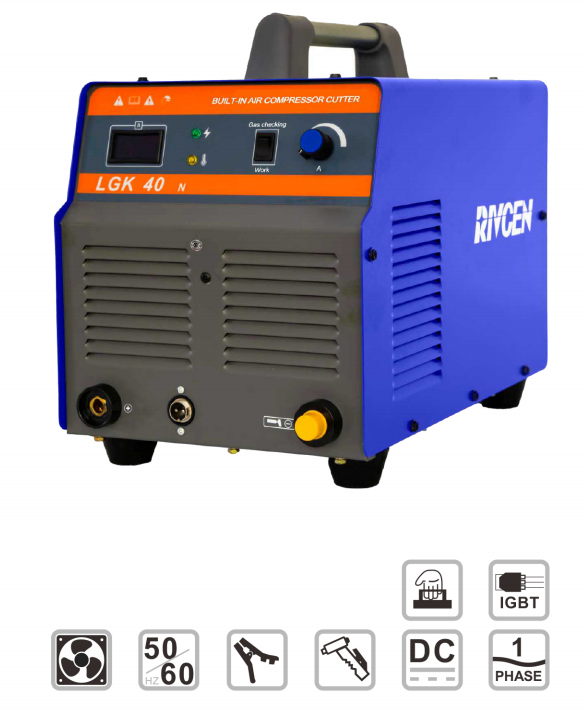

The Rivcen CUT40N air plasma cutter built-in air compressor and high powered IGBT components is the perfect solution for cutting low carbon steel, stainless steel and low alloy steel.The cutter maximum cutting thickness up to 16mm, perfect cutting thickness 10mm.
Product Description
KEY FEATURES
Built-in air compressor cutter
IGBT plasma cutting inverter
Maximum cutting thickness up to 16mm, perfect cutting thickness 10mm
Smooth precise cutting
Digital display
HF ignition
Portable, easy to operate
Gas checking function
TECHNICAL DATA
Input Voltage
AC220V-50/60Hz
Rated Input Power( KW)
6.6
Rated Input Current(A)
29.9
Current Range (A)
15-40
Rated Output Voltage (V)
96
No-load Loss(W)
40
No-load Voltage(V)
239
Duty Cycle (% )
35
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm)
500x340x380
Net Weight ( KG)
15.5

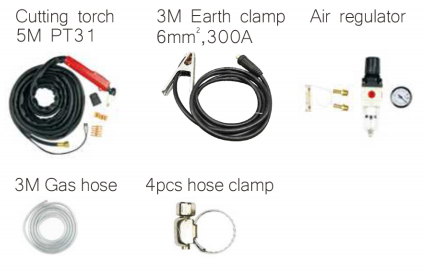

STANDARD ACCESSORIES
