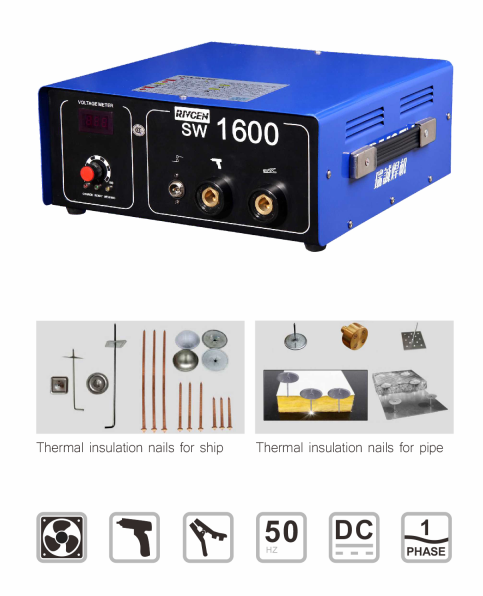

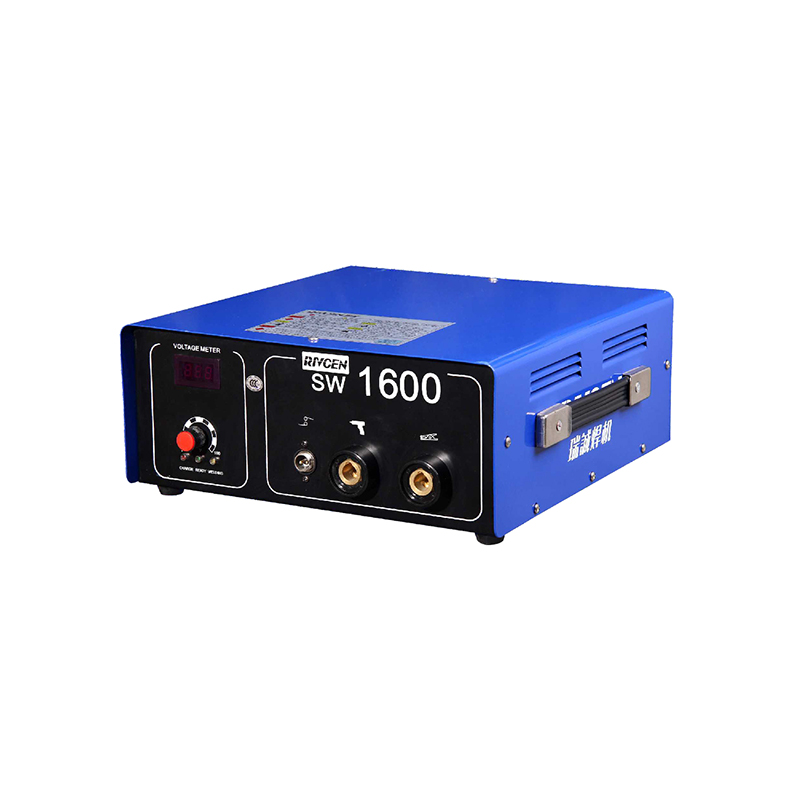

The Rivcen SW1600 STUD welding is a particularly economical welding process for joining round-shaped metallic parts ( studs /welding studs/ welding elements ) with metallic workpieces suchas sheet metal, profiles and pipes.
Product Description
KEY FEATURES
Only use 220V，50Hz
1600W STUD welding
Voltage digital meter
Simple, speedy handling = high productivity
Mobile, compact and easy-to-use
Complete surface area coverage
Weldable on very thin metal thicknesses
Different material combinations possible
High quality welding process: no riveting, gluing.Screwing
TECHNICAL DATA
Input Voltage
AC220V-50Hz 10A
Welding speed(PCS/MIN )
10-20
Welding time(MS)
1-3
Capacitor capacity ( uF )
66000
Welding energy( W)
1600
Charge voltage( V)
10-200
Power mode
Capacitor Energy Storage
Welding Scope
M3-M6
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm)
435x245x555
Net Weight ( KG)
15.5
