KEY FEATURES
Multi-function of TIG and MMA welder as well asair plasma cutting
Air cooling, thermostatic protection, suitable for DIY
MOSFET inverter technology
High working efficiency, DC output
HF ignition, easy arc start, enrich welding material,seldom does the welding deformation
Mainly used for welding and cutting of carbon steel,stainless steel, alloy steel, copper etc
TECHNICAL DATA
Input Voltage | AC220V-50/60Hz |
Rated Input Power( KW) | 3.08/5.13/4.72 |
Rated Input Current(A) | 13.8/23.2/14 |
Current Range (A) | 10-120/30-120/15-30 |
Rated Output Voltage (V) | 15/25/92 |
No-load Loss(W) | 40 |
No-load Voltage(V) | 55/55/220 |
Duty Cycle (% ) | 60 |
Protection/Insulation Grade | IP21S/F |
Packing Dimension(L*W*H mm) | 490x260x340 |
Net Weight ( KG) | 8.5 |

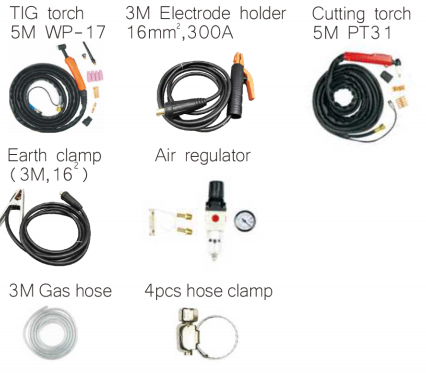

STANDARD ACCESSORIES
