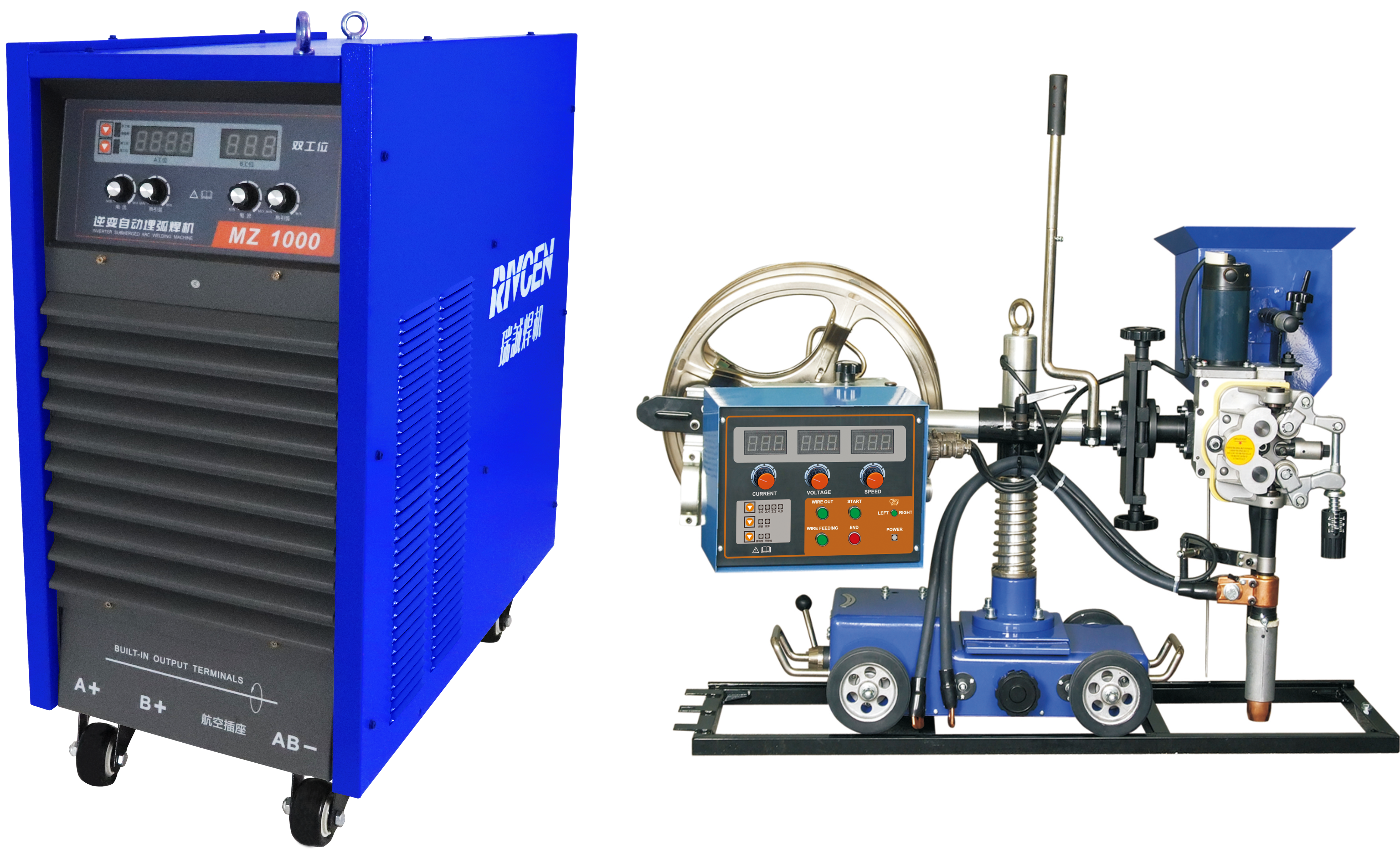

Sub Merged Arc Welding Features:
Weld penetration control technology; Soft switch technology design with good welding performance; 30% weight, 50% volume, 80% input capacity of the traditional machine; High duty cycle design suitable for heavy industry; CC/CV mode selection; Welding current and voltage digital display; Power source can be used for SAW, band strip welding, as well as MMA, Gouging and electrode slag welding
Technical Specifications:
Power Source:
Input Power: 3~380 V ±15%, 50/60 Hz
Rated Input Capacity: 55.6 kVA
Rated Input Current: 84.30 A
Rated Output Current: 1000 A
Rated Output Voltage: 44 V
Open Circuit Voltage: 76 V
Duty Cycle: 100 % @ 40 °C
Efficiency: 85 %
Power Factor: 0.93
Output Current Adjust Range (A): 100-1000
Depth of Fusion Adjust: From Shallow to deep: DC, A, B, C, D (A is the standard)
Cooling Mode: Air Cooling
Insulation Grade: F / Ingress Protection: IP21S
Dimension (L x W x H) mm: Approx. (800*430*900) / Net Weight (Kg): Approx. 78
Welding Trolley:
Suited Wire Diameter(mm): Ø3, Ø4, Ø5
Wire Feed Speed Adjust Range (cm/min): 25-300
Welding Speed Adjust Range (mm): 20-155
Welding Head Vertical Adjust Range (mm): 93
Welding Head Horizontal Adjust Range (mm): ±30
Crutch Vertical Adjust Range (mm): 140
Wheel Tread (mm): 300
Wheel Base(mm): 350
Flux Capacity(L): 6
Dimension (L x W x H) mm: Approx. (1000 x 570 x 920)
Net Weight (Kg): Approx. 55KGS
Standard accessories :
1.0m truck (2m 10m 70mm2 connecting cable、1pc 10m 14pin controlling cable、2pcs 6m 70mm2 earth clamp cable )
