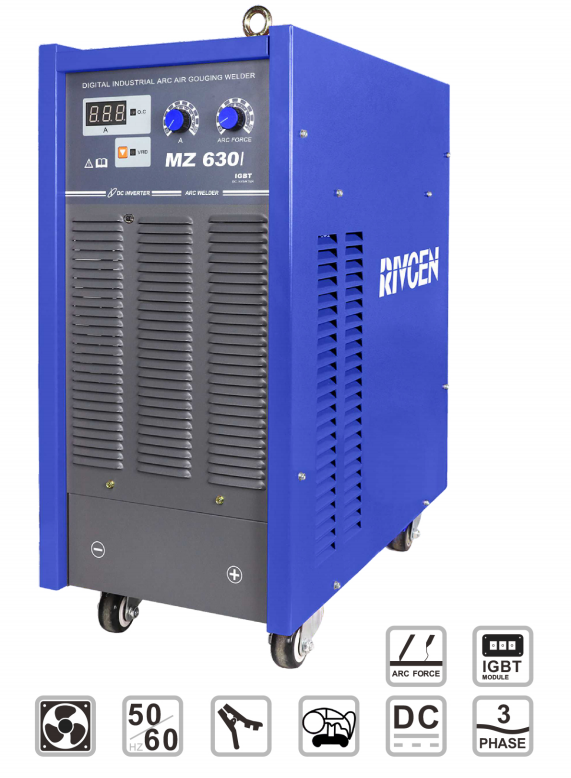

KEY FEATURES

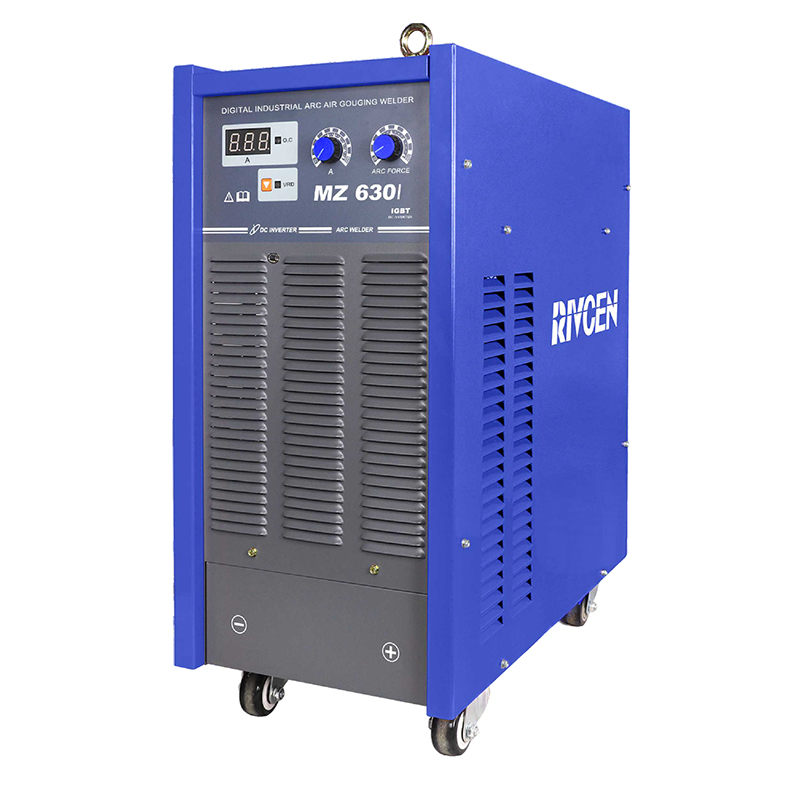

Submerge arc welding
Arc air gouging application
Current digital meter
Arc force function
DC inverter arc welder
Built-in remote control system
Welding power with wheel
High duty cycle ( 100% arc ignition rate )
Short-circuit, over current and over heat protections
Suitable welding materials: carbon steel, low alloysteel, stainless steel, refractory steel and etc.
Application fields: steel-structure building,shipbuilding, boiler,pressure vessel, bridge buildingindustry, chemicalindustry, crane machinery
TECHNICAL DATA
| Input Voltage | AC380V-50/60Hz |
| Rated Input Power(KW) | 35.1 |
| Rated Input Current( A) | 53.2 |
| Current Range(A) | 50-630 |
| Rated Output Voltage (V) | 44 |
| No-load Loss(W) | 200 |
| No-load Voltage(V) | 72 |
| Duty Cycle(%) | 100 |
| Protection/Insulation Grade | IP21S/F |
| Packing Dimension(L*W*H mm) | 780x380x775 |
| Net Weight ( KG) | 68.5 |
STANDARD ACCESSORIES
MZ carriage with 1.0m track( 2pcs 10M 70MM2 connecting cable,1pc 10M 14pin controlling cable.2pcs 6M 70MM2 earth cable)
