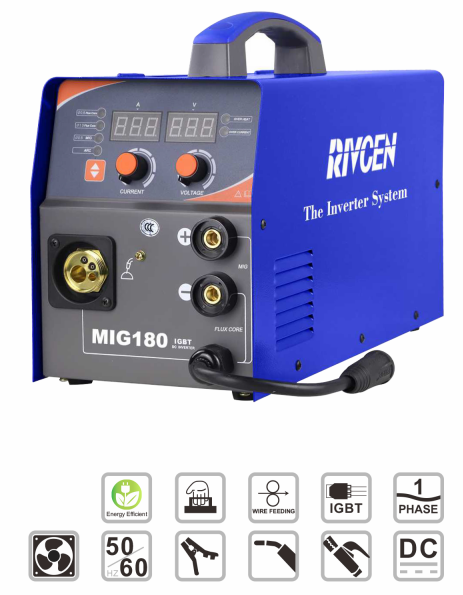

The Rivcen MIG180 compact is equipped with powerful IGBT components and a singular PCB for improved efficiency.This compact and portable inverter offers excellent welding characteristics and consistently reliable performance for both MIG/MMA/gasless welding processes.
Product Description
KEY FEATURES
Suitable for 5kgs wire spool
Compact wire feeder
Overheat/over current functions
Compact design, light weight, easy to carry
Suitable for 0.8/1.0mm gasless wire
Max current 170A
Stable and reliable arc
MIG/MMA/gasless three functions
Easy arc starting, less spatter, stable current
TECHNICAL DATA
Input Voltage AC220V-50/60Hz Rated Input Power( KW) 6.7 Rated Input Current(A) 30.4 Current Range (A) 50-170 Rated Output Voltage (V) 23 Wire-feeding Speed(m/min ) 2-15 Plate Thickness(mm ) 0.8+ Duty Cycle (% ) 40 Protection/Insulation Grade IP21S/F Packing Dimension(L*W*H mm) 500x295x340 Net Weight ( KG) 8.5
