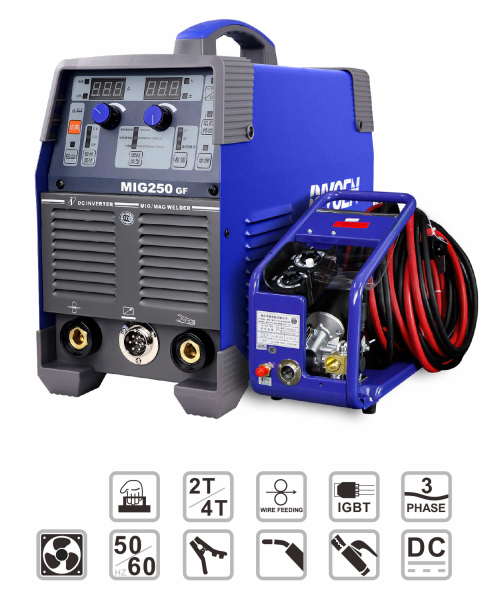

The Rivcen MIG250GF synergic is equipped with powerful IGBT components，multi process capabilities，digital meters and three PCB for improved efficiency and maintenance.This synergic inverter offers excellent welding characteristics and consistently reliable performance for MG/MAG/MMA welding processes.
Product Description
KEY FEATURES
Full digital control
Separated wire feeder
MIG/MAG/MMA welding processes
Suitable for 0.8/1.0mm welding wire
2T/4T/crater current adjustment
Wire checking function
Wire diameter optional
ARC characteristic adjustment
Synergic/separated adjustment
Easy arc starting, less spatter, stable current
Suitable for galvanized plate, stainless steel
TECHNICAL DATA
Input Voltage AC380V-50/60Hz Rated Input Power( KW) 8.3 Rated Input Current(A) 14.4/12.7 Current Range (A) 30-250 Rated Output Voltage (V) 30/26.5 Wire-feeding Speed(m/min ) 2-24 Plate Thickness(mm ) 1.0+ Duty Cycle (% ) 60 Protection/Insulation Grade IP23S/F Packing Dimension(L*W*H mm) 540x320x410 Net Weight ( KG) 13
STANDARD ACCESSORIES
