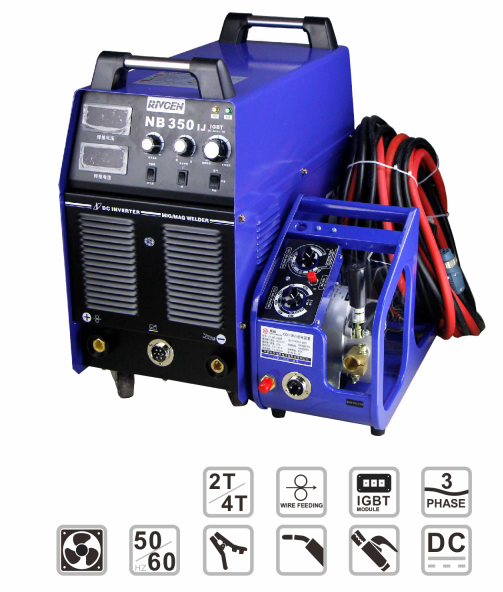

The Rivcen MIG350l separated equipped with powerful IGBT module， digital meters and multi process capabilities offers excellent welding characteristics and rugged, reliable performance.This high quality three phase inverter is an excellent choice for medium to heavy duty industrial manufacturers.
Product Description
KEY FEATURES
IGBT module inverter technology
Separated wire feeder
Digital amp & volt meter
High duty cycle
Suitable for 1.0/1.2mm welding wire
MMA function
2T/4T fucntion
Crater current & crater voltage adjustment
Gas checking & wire checking
ARC characteristic adjustment
Easy arc starting, less spatter, stable current
TECHNICAL DATA
Input Voltage AC380V-50/60Hz Rated Input Power( KW) 13.9 Rated Input Current(A) 21.1 Current Range (A) 40-350 Rated Output Voltage (V) 16.5-31.5 Wire-feeding Speed(m/min ) 3-24 Plate Thickness(mm ) 1.0+ Duty Cycle (% ) 100 Protection/Insulation Grade IP21S/F Packing Dimension(L*W*H mm) 675x385x630 Net Weight ( KG) 34.5
STANDARD ACCESSORIES
