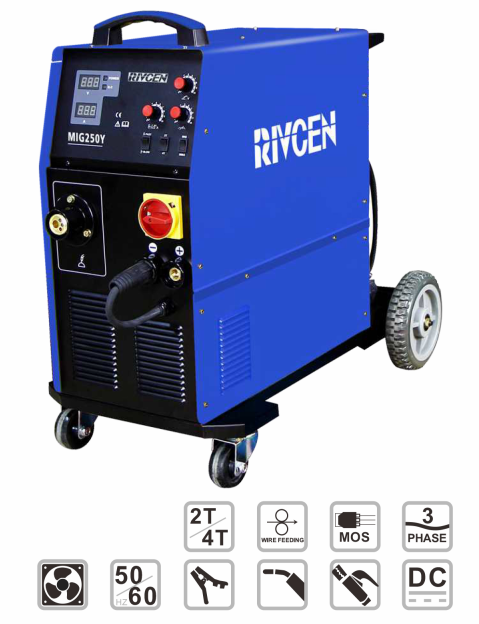

The Rivcen MIG250Y is designed with mosfet inverter, multiprocess capabilities and three PCB for improved efficiency and maintenance.The Rivcen MIG250Y offers excellent welding characteristics and consistently reliable performance for MIG/MAG/MMA welding processes.The machine can weld flux-cored welding wire.
Product Description
KEY FEATURES
MOS integrated technology
High performance compact MIG/MAG/MMA Inverter
Digital meter display
Built-in wire feeder
Welding power with wheel
Suitable for 0.8 and 1.0mm welding wire
15kg/2 0kg welding wire
Can weld flux-cored wire
Stable and reliable arc
2T/4T function
Gas cylinder tray
TECHNICAL DATA
Input Voltage AC380V-50/60Hz Rated Input Power( KW) 8.4 Rated Input Current(A) 12.7 Current Range (A) 50-250 Rated Output Voltage (V) 16.5-26.5 Wire-feeding Speed(m/min ) 2.5-24 Plate Thickness(mm ) 0.8+ Duty Cycle (% ) 60 Protection/Insulation Grade IP21S/F Packing Dimension(L*W*H mm) 935x490x795 Net Weight ( KG) 39
STANDARD ACCESSORIES
