The Rivcen MIG500G is equipped with powerful IGBT module,digital panel and multi-process capabilities, which offers excellent welding characteristics and ruggedized & reliable performance.The inverter system is an excellent choice for common industrial manufacturers.
Product Description
KEY FEATURES
IGBT module inverter
Separated wire feeder
Digital amp & volt meter
High duty cycle
Suitable for 1.0/1.2/1.6mm welding wire
MMA function
2T/4T function
Crater current & crater voltage adjustment
Gas checking & wire checking
ARC characteristic adjustment
Easy arc starting, less spatter, stable current
TECHNICAL DATA
Input Voltage AC380V-50/60Hz Rated Input Power( KW) 19.6 Rated Input Current(A) 29.7 Current Range (A) 40-500 Rated Output Voltage (V) 16-43 Wire-feeding Speed(m/min ) 3-15 Plate Thickness(mm ) 1.0+ Duty Cycle (% ) 60 Protection/Insulation Grade IP21S/F Packing Dimension(L*W*H mm) 605x355x515 Net Weight ( KG) 28

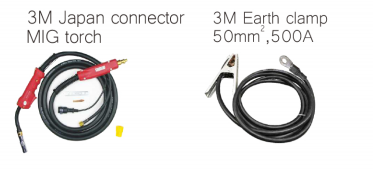

STANDARD ACCESSORIES
