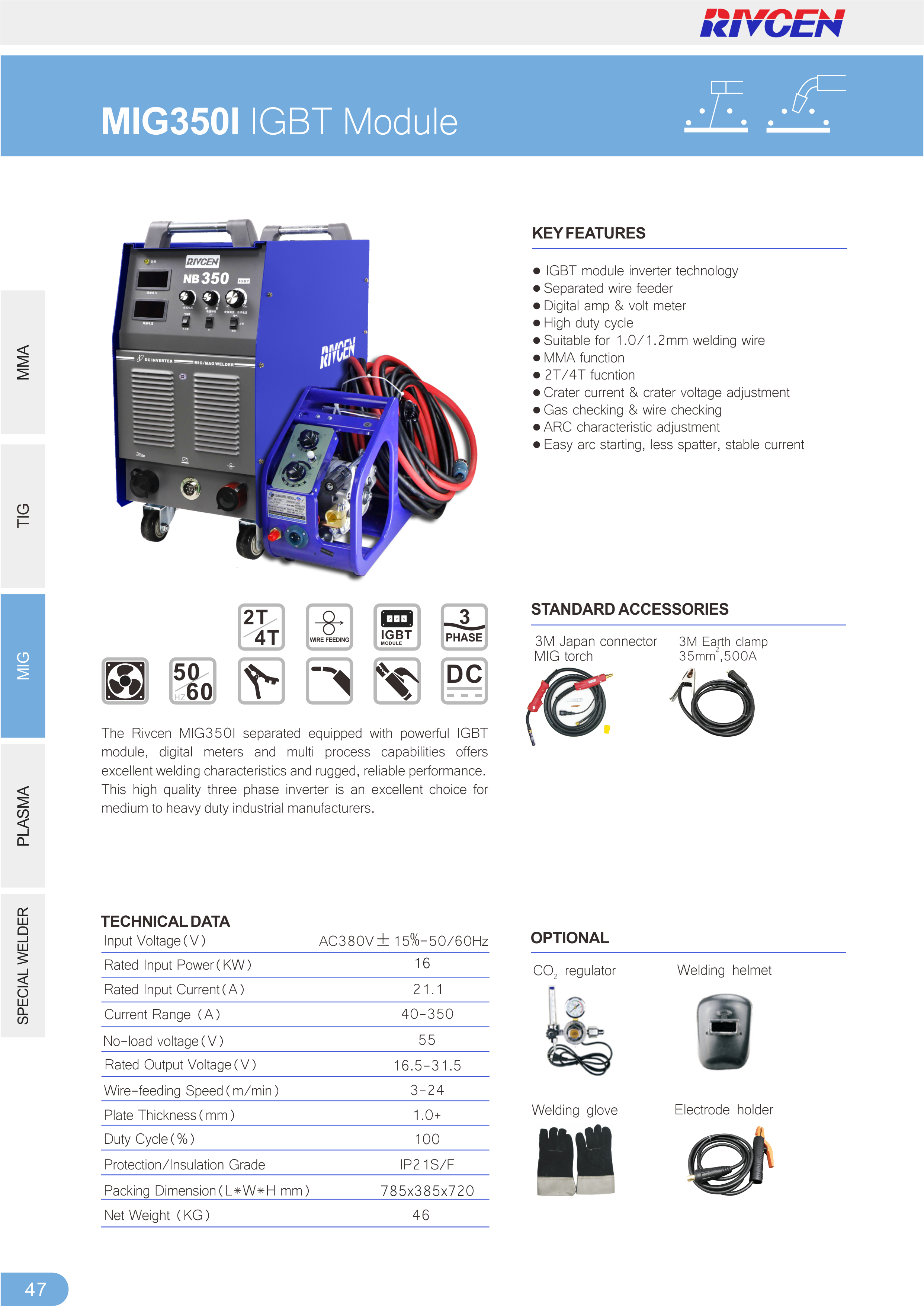

Technical Specifications: Welding Processes: CO2/MIG/MAG welding capability / MMA
Technology: IGBT MODULD soft-switch inverter technology with high reliability efficiency, energy savings, and minimal spatter, producing clean welding appearance.
Adjustability & Control：adjustable Arc; welding current and voltage can be independently adjustable for precise performance.
Parameter：
Power Voltage: 380-440 V / Three-phase 50/60HZ
Rated Input Power: 16 kVA
No-load Voltage: 55 V
Real output Current Range: 40-350A
Rated Welding Current: up to 350 A
Rated Welding Current: 350 A
Duty Cycle: 100%
Efficiency: 85%
Usable Electrode: 1.5-6.0 mm (MMA)
Wire Diameter: 0.8-1.2 mm (MIG)
Accessories:1.5 m cable with earth clamp CO₂ torch CO₂ gas regulator MIG wire (5 kg reel)
