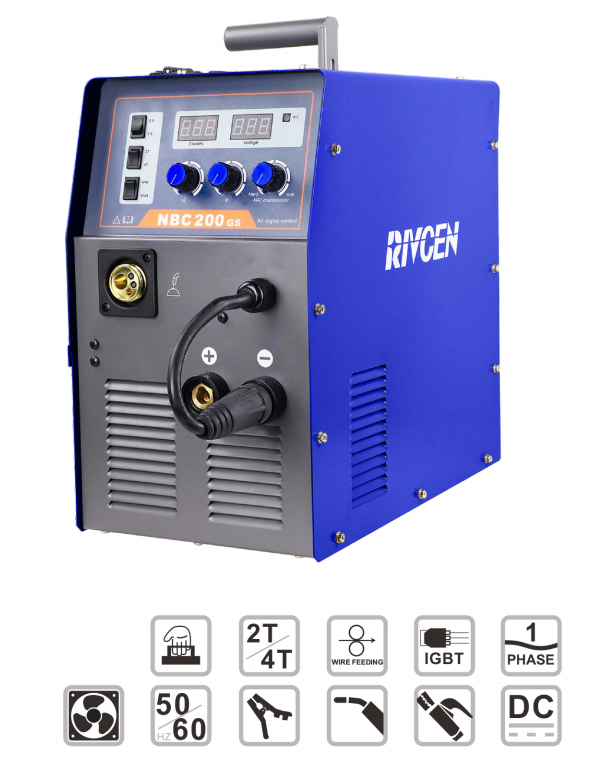

The Rivcen MIG200GS is equipped with powerful IGBT components,multi process capabilities and a singular PCB for improved efficiency and maintenance.This inverter offers excellent welding characteristics and consistently reliable performance for MIG/MAG /gasless welding processes.
Product Description
KEY FEATURES
Integrated digital welder
High performance MIG Inverter
Built-in wire feeder
Suitable for 0.8 and 1.0mm welding wire
Stable and reliable arc
ARC characteristic adjusted between hard and soft
MIG/MAG/gasless three functions
2T/4T function
Easy arc starting,less spatter, stable current
ldeal for production, site work & maintenance
Can weld electrodes of up to 4mm
TECHNICAL DATA
Input Voltage AC220V-50/60Hz Rated Input Power( KW) 8.2 Rated Input Current(A) 37.4 Current Range (A) 50-200 Rated Output Voltage (V) 16.5-24 Wire-feeding Speed(m/min ) 2.5-18 Plate Thickness(mm ) 0.8+ Duty Cycle (% ) 60 Protection/Insulation Grade IP21S/F Packing Dimension(L*W*H mm) 560x355x545 Net Weight ( KG) 20
STANDARD ACCESSORIES
