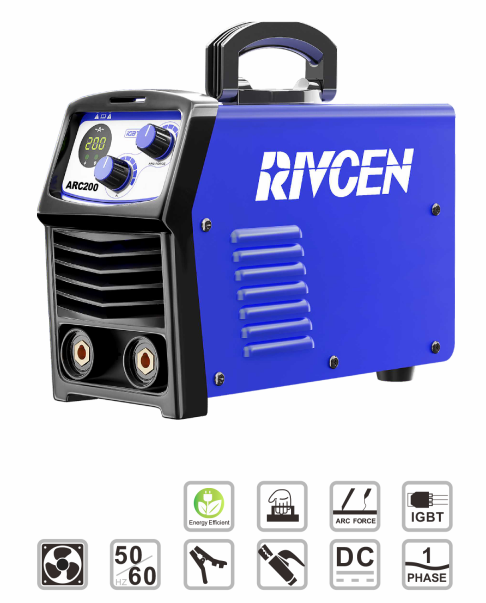

The Riven ARC200 compatible with electrodes: E7014,E7018.As this machine is IGBT Technology based, it generates less heatand is light weight. lesser voltage drop inside machine enables user to use longer welding cables.
Product Description
KEY FEATURES
Digital meter, max current 200A
4.0 electrode continuously, can work stable with100m welding cable
IGBT inverter technology
Adjustable arc force control
Compact size, lightweight
35-50mm sockets
Easy arc starting
Downwards capacitance design for high dust proofLevel
Auto-compensation for voltage fluctuation
Over heat and over current self-production function
TECHNICAL DATA
Input Voltage
AC220V-50/60Hz
Rated Input Power( KW)
9.6
Rated Input Current(A)
43.6
Current Range (A)
30-200
Rated Output Voltage (V)
28
No-load Loss(W)
40
No-load Voltage(V)
58
Duty Cycle (% )
60
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm)
330x160x250
Net Weight ( KG)
4.7
STANDARD ACCESSORIES
KEY FEATURES
Digital meter, max current 200A
4.0 electrode continuously, can work stable with100m welding cable
IGBT inverter technology
Adjustable arc force control
Compact size, lightweight
35-50mm sockets
Easy arc starting
Downwards capacitance design for high dust proofLevel
Auto-compensation for voltage fluctuation
Over heat and over current self-production function
