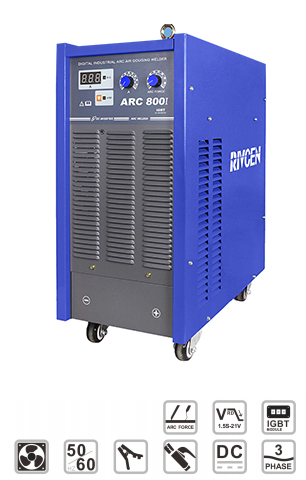

The Rivcen ARC8001 digital industrial arc air gouging welder canbe performed on the work piece in all directions, the process cangouge or cut almost all common metals, as most of the surfacecarbonized materials, near the cut, are removed during a cleaningprocess the scraps can be re-melted.
Product Description
KEY FEATURES
Arc air gouging welder
Rod gouging capabilities
IGBT module inverter technology
100% high duty cycle
10.0 electrode continuously, can work stable with 150m torch cables
Digital meter
Suitable for all types of carbon arc gouging
Terminal block sockets
Arc force & VRD function
Advanced control technology
Applicable for heavy industrial project
TECHNICAL DATA
Input Voltage
AC380V-50/60Hz
Rated Input Power( KW)
44.5
Rated Input Current(A)
67.6
Current Range (A)
60-800
Rated Output Voltage (V)
44
No-load Loss(W)
300
No-load Voltage(V)
84
Duty Cycle (% )
100
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm)
780x380x775
Net Weight ( KG)
68.5

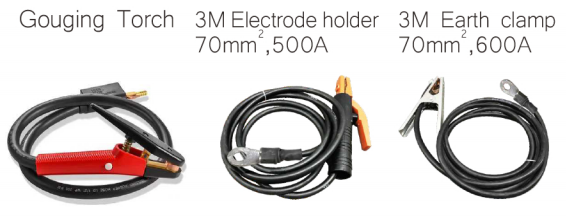

STANDARD ACCESSORIES
KEY FEATURES
Arc air gouging welder
Rod gouging capabilities
IGBT module inverter technology
100% high duty cycle
10.0 electrode continuously, can work stable with 150m torch cables
