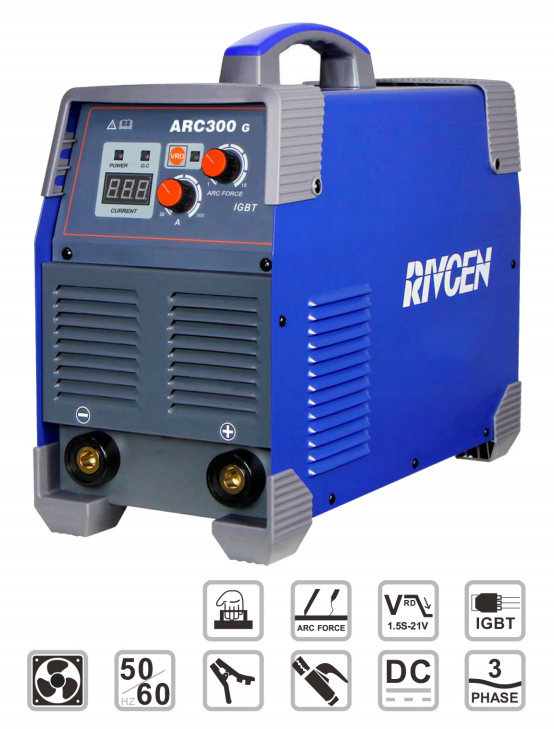

The Rivcen ARC300G equipped with ARC force function thatassists in stabilizing the arc, preventing it from cutting out during theweld and preventing the electrode from sticking.
Product Description
KEY FEATURES
Arc force & VRD function
Suitable for acid & basic electrode, cellulose electrode optional
User-friendly,cost-effective
35-50mm sockets
Digital meter
Excellent welding performance up to 5.0mm,4.0mm electrode continuously
Over heat and over current self-production function
ldeal for welding of carbon steels, low-alloy steelsand stainless steels
TECHNICAL DATA
Input Voltage
AC380V-50/60Hz
Rated Input Power( KW)
12.1
Rated Input Current(A)
18.4
Current Range (A)
30-300
Rated Output Voltage (V)
32
No-load Loss(W)
80
No-load Voltage(V)
60
Duty Cycle (% )
60
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm)
540x320x410
Net Weight ( KG)
10
STANDARD ACCESSORIES
