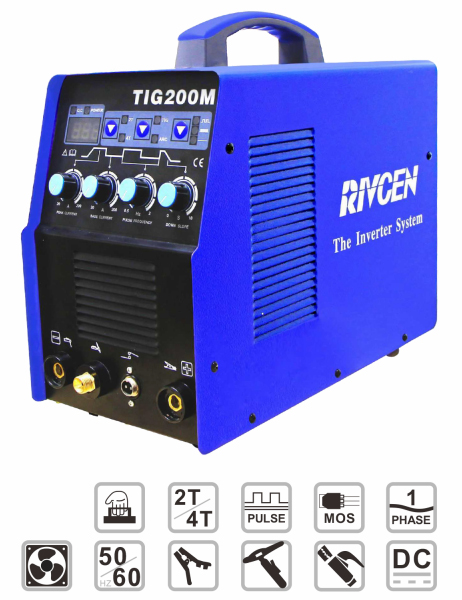

The Rivcen TIG200M pulse welder allows you to more easily weldthin metal. Welders who use a high degree of pulse will be able totravel faster along with the metal, resulting in less extra material toremove, giving cleaner welds.
Product Description
KEY FEATURES
DC Pulse TIG/ MMA digital
Multifunction digital control system
MOS inverter technology
Pulse frequency can be adjusted
Down slope function
Peak current function
Base current function
Max MMA current 180A
HF arc ignition 2T/4T
High efficiency, stable and reliable arc
Auto-compensation for voltage fluctuation
10-25mm sockets
It can weld stainless steel, carbon steel, copper
TECHNICAL DATA
Input Voltage AC220V-50/60Hz Rated Input Power(KW) 9.6/6.2 Rated Input Current( A) 43.6/28 Current Range(A) 10-200/30-180 Rated Output Voltage (V) 28/18 No-load Loss(W) 40 No-load Voltage(V) 56 Duty Cycle(%) 60 Protection/Insulation Grade IP21S/F
Packing Dimension(L*W*H mm) 530x310x415 Net Weight ( KG) 11

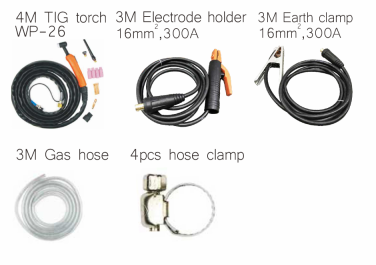

STANDARD ACCESSORIES
