TIG300A DC MMA TIG300A DC MMA

TIG300A DC MMA

Availability:
Quantity:
Inquire Add to Basket

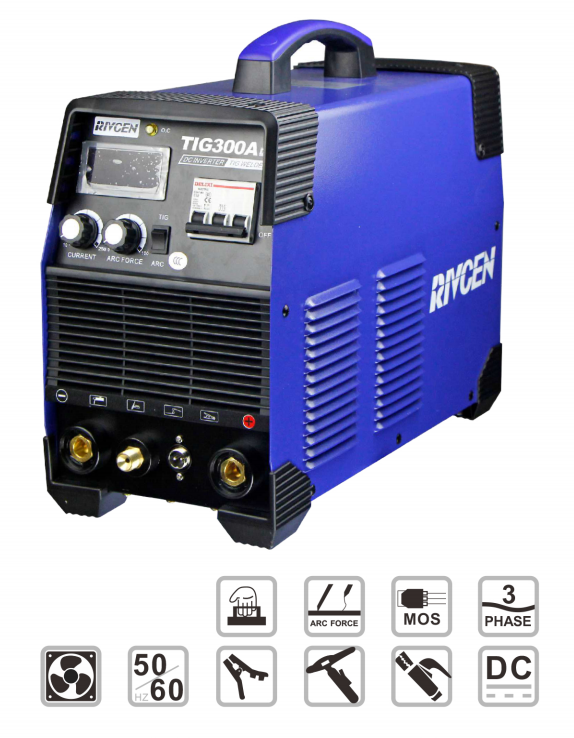

The Rivcen TIG300A is equipped with powerful MOS components and three PCB for improved efficiency and maintenance.
The Rivcen TIG300A with high frequency starting also offers MMA functionality making it an ideal choice for maintenance or manufacturing.
Product Description

1

KEY FEATURES

  • With MMA function

  • DC inverter mosfet technology

  • Digital display

  • Compact size with three PCB board

  • Arc force function

  • Strong high frequency for easy starting

  • High efficiency, stable and reliable arc

  • 35-50mm sockets

  • Auto-compensation for voltage fluctuation

  • It can weld stainless steel, carbon steel, low-alloy Steel


TECHNICAL DATA

Input Voltage AC380V-50/60Hz
Rated Input Power(KW) 12.1/8.4
Rated Input Current( A) 18.4/12.7
Current Range(A) 10-300
Rated Output Voltage (V) 32/22
No-load Loss(W) 60
No-load Voltage(V) 54
Duty Cycle(%) 60
Protection/Insulation Grade IP21S/F
Packing Dimension(L*W*H mm) 580x315x415
Net Weight ( KG) 16

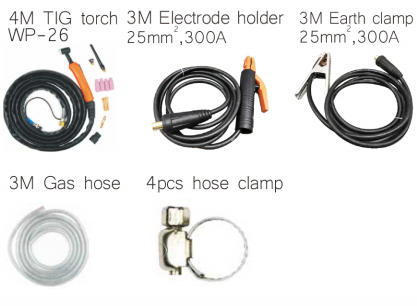

STANDARD ACCESSORIES

1-
