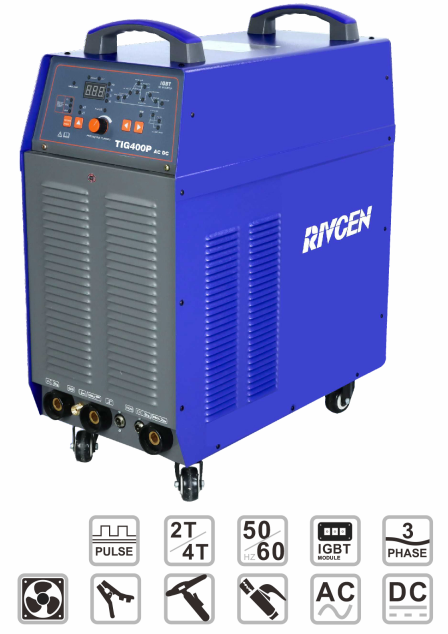

The Rivcen TIG400P AC DC is a pulse digital AC/DC inverter welder with a wide range of functions, high performance and advanced technology. This multi-function welder with AC TIG welding( square wave, triangular wave and sine wave ), AC pulsed TIG welding，DC TIG welding, DC pulsed TIG welding，AC/DC hybrid TIG welding and coated electrode MMA welding ( DC, AC)
Product Description
KEY FEATURES
TIG Pulse AC/DC with digital control
IGBT module inverter
Intuitive control panel, easy to operate
Pre-flow, post flow time
Up slope, down slope
Pulse frequency, pulse width adjustment
Start current, base current, crater current Adjustment
Cleaning width,AC amplitude, AC frequency Adjustment
2T/4T/MMA functions
AC function for aluminum and aluminum alloys
DC TIG function for carbon steel, copper and non-ferrous metals
High speed pulse with precise adjustment forultimate weld bead
Remote control interface
TECHNICAL DATA
Input Voltage
AC380V-50/60Hz
Rated Input Power(KW)
9.5/13.2
Rated Input Current( A)
14.4/20
Current Range(A)
30-400/10-400
Rated Output Voltage (V)
HF
No-load Loss(W)
0-130
No-load Voltage(V)
62
Duty Cycle(%)
60
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm)
650x390x720
Net Weight ( KG)
36
STANDARD ACCESSORIES
KEY FEATURES
TIG Pulse AC/DC with digital control
IGBT module inverter
Intuitive control panel, easy to operate
Pre-flow, post flow time
Up slope, down slope
Pulse frequency, pulse width adjustment
Start current, base current, crater current Adjustment
Cleaning width,AC amplitude, AC frequency Adjustment
2T/4T/MMA functions
AC function for aluminum and aluminum alloys
DC TIG function for carbon steel, copper and non-ferrous metals
High speed pulse with precise adjustment forultimate weld bead
