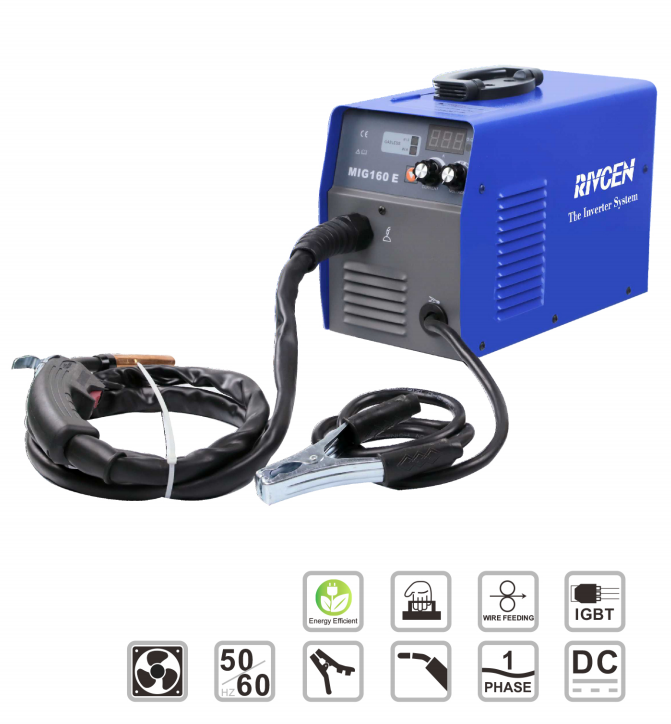

The Rivcen MIG160E compact is equipped with powerful IGBT components and a singular PCB for improved efficiency.This compact and portable inverter offers excellent welding characteristics and consistently reliable performance for both MIG/gasless welding processes.
Product Description
KEY FEATURES
Suitable for 1kg wire spool
Compact wire feeder
Compact design, light weight, easy to carry
Suitable for 0.8/ 1.0mm gasless wire
Can weld 0.8mm thin plate
Max current 140A
Stable and reliable arc
MIG/gasless two functions
Easy arc starting, less spatter, stable current
TECHNICALDATA
Input Voltage
AC220V-50/60Hz
Rated Input Power( KW)
4.8
Rated Input Current(A)
21.8
Current Range (A)
30-140
Rated Output Voltage (V)
20
Wire-feeding Speed(m/min )
2-11
Plate Thickness(mm )
0.8+
Duty Cycle (% )
40
Protection/Insulation Grade
IP21S/F
Packing Dimension(L*W*H mm)
460x235x300
Net Weight ( KG)
6
STANDARD ACCESSORIES
Remark: 3M MIG torch, 3M earth clamp built-in,refer to machine
